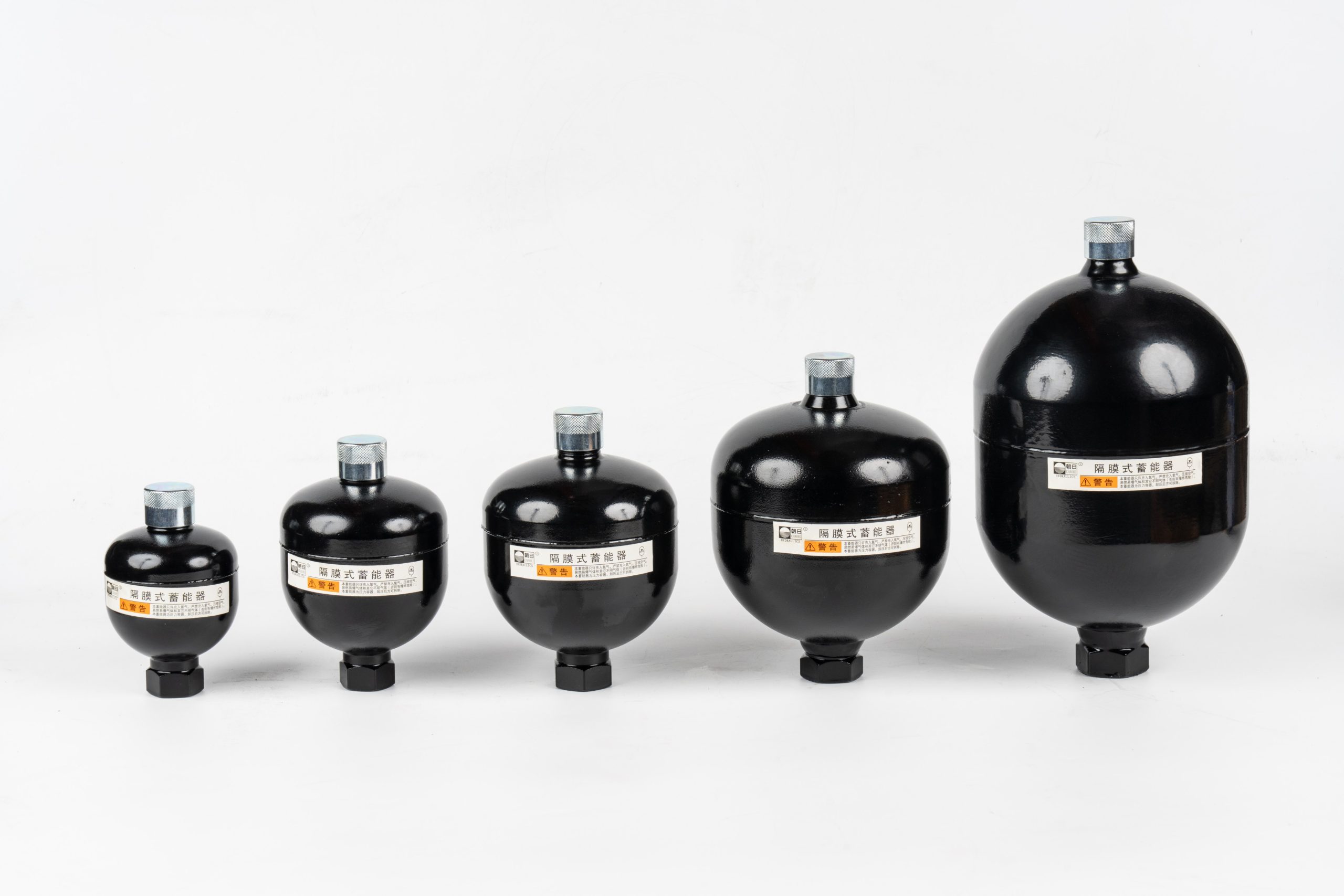

The diaphragm accumulator is the perfect solution for small-volume systems. We offer high-performance accumulator diaphragm units and diaphragm type accumulator products for rapid energy release. As a professional manufacturer, we provide reliable diaphragm hydraulic accumulator designs for mobile and industrial applications. Our GXQ series is engineered to deliver high response speeds in a lightweight package, ensuring your hydraulic system remains stable and efficient.
Why the Diaphragm Design Outperforms in Small Systems
The most distinct feature of our diaphragm accumulator is its robust welded structure. Unlike other designs, the GXQ series uses a high-strength steel shell that is electron-beam welded to create a permanent, leak-proof seal. This welded pressure vessel is compact and requires no internal maintenance. Because the two halves are fused together, the diaphragm type accumulator can handle high vibrations and physical shocks without the risk of parts coming loose over time.
The internal accumulator diaphragm is a flexible rubber membrane that separates nitrogen gas from hydraulic fluid. Because this membrane is very thin and lightweight, it reacts to pressure changes faster than any other type. This “instant response” is the core strength of the diaphragm hydraulic accumulator. Whether you need to absorb a tiny pressure spike or provide a quick burst of oil, the diaphragm moves immediately to protect your sensitive valves and sensors.
Engineering for Extreme Working Environments
The life of a diaphragm accumulator depends on its rubber quality. We use specialized elastomers like NBR, Viton, and ECO for our accumulator diaphragm production. These materials are chosen for their low gas permeation and their ability to stay flexible in extreme temperatures. This ensures your diaphragm type accumulator maintains its gas charge for a much longer time, even in harsh chemical environments.

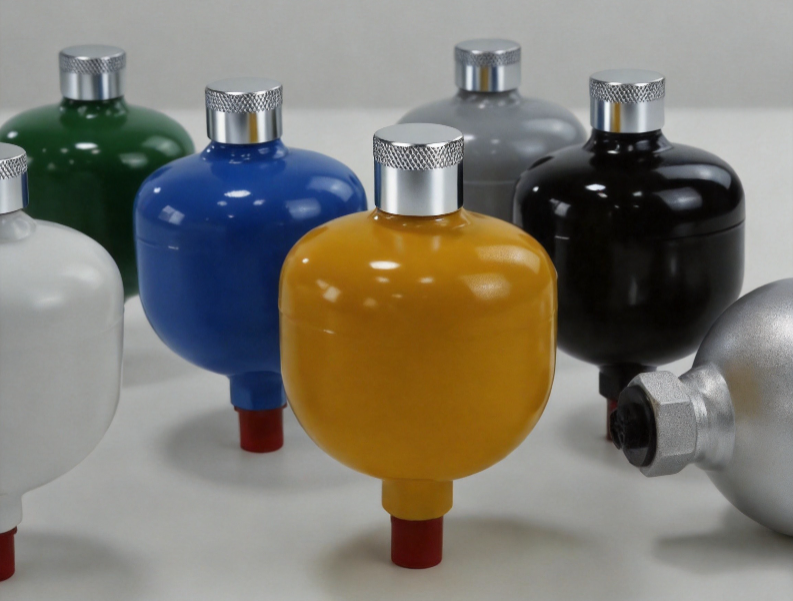

To protect the exterior, every diaphragm hydraulic accumulator is coated with durable industrial paint. For offshore or chemical applications, we offer stainless steel shells or specialized epoxy coatings. This prevents rust and corrosion from weakening the welded seams, ensuring that the diaphragm accumulator remains safe and operational for years, even when exposed to salt spray or humid factory air.
Where the Diaphragm Type Accumulator Shines
In tractors, harvesters, and sprayers, space is at a premium. The diaphragm hydraulic accumulator is widely used in these vehicles for suspension seat cushioning and braking support. Its lightweight nature ensures that the machine’s center of gravity remains stable while providing the necessary hydraulic force to handle uneven terrain and heavy loads during farm work.
High-precision machine tools require a very stable flow of oil to ensure accurate cutting and movement. The diaphragm type accumulator is used to compensate for small internal leaks and to stabilize the pressure in the clamping circuits. This prevents any sudden movements that could ruin a workpiece, making the accumulator diaphragm a silent partner in high-tech manufacturing and automated robotic arms.
Precision Engineered for Modern Hydraulics
Built from high-strength carbon steel, our diaphragm accumulator supports rated pressures up to 3,600 PSI (250 Bar). Every unit undergoes strict quality tests to ensure the welded seams and accumulator diaphragm handle high stress without any risk of leakage.
To simplify installation, the diaphragm hydraulic accumulator offers multiple oil-end connection types. Our various thread options ensure that the diaphragm type accumulator fits perfectly into your existing pipe layout, reducing the need for extra adapters or complex modifications.
The gas end features specialized valves designed for easy pre-charging. Using our professional charging tools, you can quickly adjust the nitrogen pressure. This user-friendly design ensures your diaphragm accumulator maintains optimal energy levels for long-term industrial or mobile use.
Quality Backed by 47 Years of Manufacturing Excellence
Chaori Hydraulic is more than just a manufacturer; we are industry leaders who helped establish the national standards for the diaphragm type accumulator. Since 1978, our 18,000 sqm factory in Ningbo has focused on excellence. We hold ISO9001, ASME, and CE certificates, ensuring that every diaphragm accumulator we ship meets the highest global safety and quality requirements.
When you choose our diaphragm hydraulic accumulator, you get a complete solution. We provide high-quality KHB/KHP ball valves, horseshoe flanges, and specialized charging kits to support your installation. Our 15 expert engineers are ready to help you select the right accumulator diaphragm materials and specifications for your unique project, providing professional support from design to delivery.
The main difference is the internal structure and volume. A bladder accumulator uses a large rubber bag and is suitable for higher volumes. A diaphragm accumulator uses a flexible flat membrane and is much more compact. The diaphragm type accumulator is usually welded and offers a higher gas compression ratio, making it better for small, tight spaces.
The primary function is to store hydraulic energy and absorb pulsations. The diaphragm hydraulic accumulator acts as a shock absorber to protect sensitive sensors and valves. It also compensates for small leaks and provides emergency power for braking or steering in mobile machinery, ensuring the system runs smoothly and safely.
Our diaphragm hydraulic accumulator can handle high gas compression ratios, often up to 8:1. This allows the unit to store and release a large percentage of its total volume. This high efficiency makes the diaphragm accumulator much more powerful than other designs of the same small size.
We recommend checking the pre-charge pressure every 6 to 12 months using a professional charging kit. Maintaining the correct nitrogen level ensures the accumulator diaphragm works at peak efficiency and prevents the membrane from over-stretching, which extends the service life of the unit.
Chaori Hydraulic has 47 years of experience and helped write the National Standards for these products. Our diaphragm type accumulator units are ASME and CE certified, ensuring global safety compliance. We use high-precision electron-beam welding to ensure every diaphragm accumulator is leak-proof and durable for years of use.
